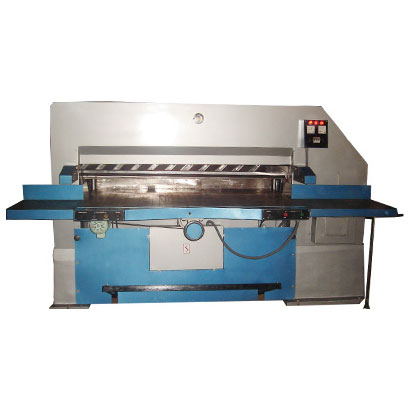

High Speed Guillotines

High Speed paper cutters are available in widest range of mechanical, electro magnetic clutch and brake models. These cutters are designed for simple operation with complete safety. We offer these machines are semi-auto/fully automatic options. Digital measuring device and air cushion beds are optional for all electro magnetic models.

SSGE SSEMC SFG SHG SHGD
Automatic Clamping (Hydraulic)
Auto Clamping (mechanical)
Motorised Clamp
Digital Readout Optional Optional N.A. Optional
Motorised backgauge
Measuring indicator (Tape)
Magnetic Clutch & brake
Photo electric safety device
Air cushioned table Optional Optional Optional
Stainless anti- rust strip on front table Optional Optional Optional
False clamp plate

We also offers Paper Guillotine with Hydraulic clamping. This model has all options as SPG has expect programme facility. This model can be supplied with or without digital read out.

Technical Data

SSGE/SSEMC SFG SHG/SHGD
SIZES 33” 36” 42” 45” 52” 60” 33” 36” 42” 45” 52” 65”/72” 36”/45”/52”
Max. cutting width 33” 36” 42” 45” 52” 60” 33” 36” 42” 45” 52” 60 36”/45”/52”
Clamp opening 4.5” 4.5” 5” 5” 5” 5” 4.5” 4.5” 5” 5” 5” 5” 4.5”/5”/5”
Cut per min. 25 25 20 20 20 18 25/30 25/30 25/30 20/25 20/25 20/25 45/45/45
Power (HP) 2.5/3 2.5/3 3.5/3 3.5/4 5.5/6 5.5/6 3.5 3.5 5.5 5.5 5.5 8 6.5/6.5/6.5
