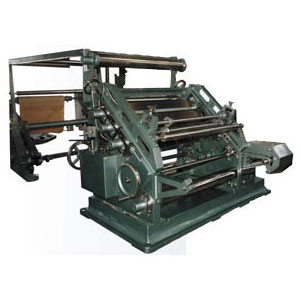

Bearing Mounted Paper Corrugating Machine Oblique

This oblique type high speed model offers a high rate of production on the roller bearing for smooth running and longer life. The machine is fitted with gear box which runs in oil bath. The machine is provided with motorized self loading twin shaft reel stand and 2 pre heating cylinders. Variable speed dive and slittering blades are optional with the machine.

Salient Features

HSCB HSCBR HSCV
Gear Box Drive
Pre Heating Cylinder
Bearing Mounting on Flute Rolls
Bush Mounting on Flute Rolls
AC Digital Drive / Eddy Current Drive
Motorised self loading
Loading Reel Stand
Hydraulic Reel Stand Optional Optional Optional
Slittering Attachment Optional Optional Optional
Synchronizay=tion to Sheet Cutter Optional Optional Optional
  • Self loading motorised reel stand for easy lifting of reels.
  • Centralised lubrication with oil pump
  • 3 Tube heaters with one pre heater
  • Flute rolls are minutely finished to give perfect impression on the board.
  • Available with narrow, Micro(e) & broad flute rolls.
  • The variable speed drive & slittering blades are optional with this machine.

Technical Data

HSCB HSCBR HSCV
Sizes in Inches 32”/ 42” / 52” / 62”/ 72” 32” / 42” / 52” / 62”/ 72 32”/ 42”/ 45”/ 52”/ 62”
Power ( H P ) 7” / 7” / 9.5 / 9.5 / 10.5 7” / 7” / 9.5 / 9.5 / 10.5 5 /5 / 5 / 5 / 7.5
Floor Space ( Feet) 6×16 / 7x 16 /8×16 / 9×16 /10×16 6×16 / 7x 16/8×16/ 9×16/ 10×16 5×15/ 6×15 / 7×15/8×15/ 9×15
Heating Load (Kw) 21 / 27 / 29 / 31 / 31 31 / 31 / 31 / 35 / 35 21/ 21/ 27/ 27/ 27
Output per min. 90/ 90/ 90/ 90/90 150/150/150/150/150 50/50/50/50/ 50
